fractal_core_shell

Scattering from a fractal structure formed from core shell spheres

Parameter Description Units Default value
scale Source intensity None 1
background Source background cm-1 0.001
radius Sphere core radius 60
thickness Sphere shell thickness 10
sld_core Sphere core scattering length density 10-6-2 1
sld_shell Sphere shell scattering length density 10-6-2 2
sld_solvent Solvent scattering length density 10-6-2 3
volfraction Volume fraction of building block spheres None 0.05
fractal_dim Fractal dimension None 2
cor_length Correlation length of fractal-like aggregates 100

The returned value is scaled to units of cm-1 sr-1, absolute scale.

Definition Calculates the scattering from a fractal structure with a primary building block of core-shell spheres, as opposed to just homogeneous spheres in the fractal model. It is an extension of the well known Teixeira[1] fractal model replacing the \(P(q)\) of a solid sphere with that of a core-shell sphere. This model could find use for aggregates of coated particles, or aggregates of vesicles for example.

\[I(q) = P(q)S(q) + \text{background}\]

Where \(P(q)\) is the core-shell form factor and \(S(q)\) is the Teixeira[1] fractal structure factor both of which are given again below:

\[\begin{split}P(q) &= \frac{\phi}{V_s}\left[3V_c(\rho_c-\rho_s) \frac{\sin(qr_c)-qr_c\cos(qr_c)}{(qr_c)^3}+ 3V_s(\rho_s-\rho_{solv}) \frac{\sin(qr_s)-qr_s\cos(qr_s)}{(qr_s)^3}\right]^2 \\ S(q) &= 1 + \frac{D_f\ \Gamma\!(D_f-1)}{[1+1/(q\xi)^2]^{(D_f-1)/2}} \frac{\sin[(D_f-1)\tan^{-1}(q\xi)]}{(qr_s)^{D_f}}\end{split}\]

where \(\phi\) is the volume fraction of particles, \(V_s\) is the volume of the whole particle, \(V_c\) is the volume of the core, \(\rho_c\), \(\rho_s\), and \(\rho_{solv}\) are the scattering length densities of the core, shell, and solvent respectively, \(r_c\) and \(r_s\) are the radius of the core and the radius of the whole particle respectively, \(D_f\) is the fractal dimension, and \(\xi\) the correlation length.

Polydispersity of radius and thickness are also provided for.

This model does not allow for anisotropy and thus the 2D scattering intensity is calculated in the same way as 1D, where the \(q\) vector is defined as

\[q = \sqrt{q_x^2 + q_y^2}\]

Our model is derived from the form factor calculations implemented in IGOR macros by the NIST Center for Neutron Research[2]

../../_images/fractal_core_shell_autogenfig.png

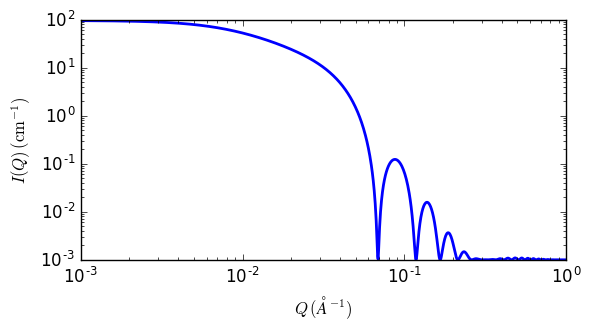

Fig. 99 1D plot corresponding to the default parameters of the model.

References

[1](1, 2) J Teixeira, J. Appl. Cryst., 21 (1988) 781-785
[2]S R Kline, J Appl. Cryst., 39 (2006) 895

Authorship and Verification

  • Author: NIST IGOR/DANSE Date: pre 2010
  • Last Modified by: Paul Butler and Paul Kienzle Date: November 27, 2016
  • Last Reviewed by: Paul Butler and Paul Kienzle Date: November 27, 2016
