core_shell_bicelle

Circular cylinder with a core-shell scattering length density profile..

Parameter Description Units Default value
scale Source intensity None 1
background Source background cm-1 0.001
radius Cylinder core radius 80
thick_rim Rim shell thickness 10
thick_face Cylinder face thickness 10
length Cylinder length 50
sld_core Cylinder core scattering length density 10-6-2 1
sld_face Cylinder face scattering length density 10-6-2 4
sld_rim Cylinder rim scattering length density 10-6-2 4
sld_solvent Solvent scattering length density 10-6-2 1
theta cylinder axis to beam angle degree 90
phi rotation about beam degree 0

The returned value is scaled to units of cm-1 sr-1, absolute scale.

Definition

This model provides the form factor for a circular cylinder with a core-shell scattering length density profile. Thus this is a variation of a core-shell cylinder or disc where the shell on the walls and ends may be of different thicknesses and scattering length densities. The form factor is normalized by the particle volume.

../../_images/core_shell_bicelle_geometry.png

Fig. 7 Schematic cross-section of bicelle. Note however that the model here calculates for rectangular, not curved, rims as shown below.

../../_images/core_shell_bicelle_parameters.png

Fig. 8 Cross section of cylindrical symmetry model used here. Users will have to decide how to distribute “heads” and “tails” between the rim, face and core regions in order to estimate appropriate starting parameters.

Given the scattering length densities (sld) \(\rho_c\), the core sld, \(\rho_f\), the face sld, \(\rho_r\), the rim sld and \(\rho_s\) the solvent sld, the scattering length density variation along the cylinder axis is:

\[\begin{split}\rho(r) = \begin{cases} &\rho_c \text{ for } 0 \lt r \lt R; -L \lt z\lt L \\[1.5ex] &\rho_f \text{ for } 0 \lt r \lt R; -(L+2t) \lt z\lt -L; L \lt z\lt (L+2t) \\[1.5ex] &\rho_r\text{ for } 0 \lt r \lt R; -(L+2t) \lt z\lt -L; L \lt z\lt (L+2t) \end{cases}\end{split}\]

The form factor for the bicelle is calculated in cylindrical coordinates, where \(\alpha\) is the angle between the \(Q\) vector and the cylinder axis, to give:

\[I(Q,\alpha) = \frac{\text{scale}}{V_t} \cdot F(Q,\alpha)^2 \cdot sin(\alpha) + \text{background}\]

where

\begin{align*} F(Q,\alpha) = &\bigg[ (\rho_c - \rho_f) V_c \frac{2J_1(QRsin \alpha)}{QRsin\alpha} \frac{sin(QLcos\alpha/2)}{Q(L/2)cos\alpha} \\ &+(\rho_f - \rho_r) V_{c+f} \frac{2J_1(QRsin\alpha)}{QRsin\alpha} \frac{sin(Q(L/2+t_f)cos\alpha)}{Q(L/2+t_f)cos\alpha} \\ &+(\rho_r - \rho_s) V_t \frac{2J_1(Q(R+t_r)sin\alpha)}{Q(R+t_r)sin\alpha} \frac{sin(Q(L/2+t_f)cos\alpha)}{Q(L/2+t_f)cos\alpha} \bigg] \end{align*}

where \(V_t\) is the total volume of the bicelle, \(V_c\) the volume of the core, \(V_{c+f}\) the volume of the core plus the volume of the faces, \(R\) is the radius of the core, \(L\) the length of the core, \(t_f\) the thickness of the face, \(t_r\) the thickness of the rim and \(J_1\) the usual first order bessel function.

The output of the 1D scattering intensity function for randomly oriented cylinders is then given by integrating over all possible \(\theta\) and \(\phi\).

For oriented bicelles the theta, and phi orientation parameters will appear when fitting 2D data, see the cylinder model for further information. Our implementation of the scattering kernel and the 1D scattering intensity use the c-library from NIST.

../../_images/cylinder_angle_definition.png

Fig. 9 Definition of the angles for the oriented core shell bicelle model, note that the cylinder axis of the bicelle starts along the beam direction when \(\theta = \phi = 0\).

../../_images/core_shell_bicelle_autogenfig.png

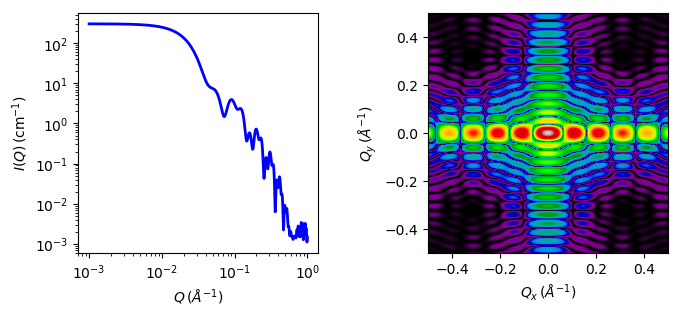

Fig. 10 1D and 2D plots corresponding to the default parameters of the model.

Source

core_shell_bicelle.py \(\ \star\ \) core_shell_bicelle.c \(\ \star\ \) lib/gauss76.c \(\ \star\ \) lib/sas_J1.c \(\ \star\ \) lib/polevl.c \(\ \star\ \) lib/sas_Si.c

References

  1. D Singh (2009). Small angle scattering studies of self assembly in lipid mixtures, John’s Hopkins University Thesis (2009) 223-225. Available from Proquest
    1. Onsager, Ann. New York Acad. Sci., 51 (1949) 627-659

Authorship and Verification

  • Author: NIST IGOR/DANSE Date: pre 2010
  • Last Modified by: Paul Butler Date: September 30, 2016
  • Last Reviewed by: Richard Heenan Date: January 4, 2017
