Size Distribution

Principle

Size distribution analysis is a technique for extracting information from scattering of a nominally two phase material where the shape of the domains of the minority phase are assumed to be known, but the size distribution is completely unknown. It is most often used in materials where the domain sizes have an extremely large variation, such as pores in rocks, hence the oft used term “pore size distribution” for this type of analysis. The scattered intensity in this case is given by the integral of the scattering intensity from every size present in the system. Basically a polydispersity integral of the monodisperse I(Q) but where the shape of the distribution can be anything and is most likely not possible to put in a parameterized analytical form. Thus the equation to fit is:

\[I(Q)= \Delta \rho^2 \int N_p(r) P(Q,r) dr\]

Where \(N_p(r)\) is the number density of particles of characteristic dimension \(r\), and \(P(Q,r)\) is the form factor for that characteristic dimension. The exact meaning of \(r\) will of course depend on the model being used.For a sphere \(r\) is simply the radius of the sphere and the \(P(Q,r)\) in this case is given by:

\[P(Q,r) = \left[ 3V_p(\Delta\rho) \cdot \frac{\sin(Qr) - Qr\cos(Qr))}{(Qr)^3} \right]^2\]

SasView is using the sasmodels package which automatically scales to volume fraction rather than number density using:

\[N_p = \phi/V_p\]

The current implementation uses an ellipsoid of revolution. Here \(r\) in the above equations is the equatorial radius. The default is for an ellipsoid with polar radius = equatorial radius and thus an axial ratio of 1 which is a sphere. The equation for an ellipsoid of revolution is given in the sasmodels documentation and \(r = R_{eq}\) with an eccentricity (aspect ratio) fixed by the user which is \(Ecc = R_{polar}/R_{eq}\). Other shapes are expected to be added in the future.

The “fitting parameter” in this approach then is the distribution function. In order to calculate this practically over a finite \(Q\) range, we replace the integral equation with the following sum, where \(r_{min}\) and \(r_{max}\) should be within the range that will significantly affect the scattering in the \(Q\) range being used.

\[I(Q)= \Delta \rho^2 \sum_{r_{min}}^{r_{max}} N_p(r) P(Q,r)\]

Even so, fitting is over determined, particularly given the noise in any real data. Essentially, this is an ill posed problem. In order to provide a reasonably robust solution, a regularization technique is generally used. Here we implement only the most common MaxEnt (Maximum Entropy) method, used for example by the famous CONTIN algorithm employed in light scattering.

Note

The assumptions inherent in this method are:

  • The system can be approximated as a two phase system

  • The scattering length density of each phase is known

  • The minor phase is made up of domains of varying sizes but a fixed shape

  • The minor phase is sufficiently “dilute” as to not have any interdomain interference terms (i.e. no S(Q)}

Maximum Entropy

The concept of statistical entropy was first introduced by Claude Shannon in 1948 in his famous treatise, A Mathematical Theory of Communication, considered the foundation of information theory [1], [2], [3]. Later, in 1957, E. T. Jaynes introduced the principle of maximum entropy in two key papers [4], [5] where he emphasized a natural correspondence between statistical mechanics and information theory. In this framework, the best solution to an optimization problem is the solution that leads to the Maximum Entropy where the Shannon Entropy is defined as:

\[H(X) = - \sum_{i} p(x_i) ln p(x_i)\]

Where \(p(x_i)\) is the probability of the ith distribution.

In a nutshell, the idea of the maximum entropy method is that the most probable distribution that satisfies all the known constraints is the best answer to the optimization problem. Also known as the “maximum ignorance” answer, and is the solution with the maximum “entropy.” In other words, the answer that makes the fewest assumptions beyond what is known.

Here, the known constraint is that \(\chi^2\) between the scattering data and the scattered intensity expected from a system of the chosen shape, with the solution distribution of sizes, must be minimized. In other words, of all the distributions that would satisfy the \(\chi^2\) constraint, we find the one with the maximum entropy. The size distribution problem however is too complex to be conducive to an analytical solution and so an iterative process is employed. Here we employ an algorithm due to Skillings and Bryan [6] as implemented in GSAS II [7].

Using the Size Distribution Analysis

Load some data with the Data Explorer.

Select a dataset and use the Send To button on the Data Explorer to load the dataset into the Size Distribution panel.

../../../../_images/ParametersTab.png

This will open the panel on the Parameters tab and plot the data to fit. The most important parameters to adjust at this point are the minimum and maximum diameters of the distribution. The calculation will only explore diameters in this range. It is important that the range of diameters be sufficient to fit the full \(Q\) range of the data (within the minimum and maximum bounds set, if any). For example, if the largest diameter will be in the Guinier region in a \(Q\) range where the data is stil showing growth, the fit will never be able to converge. Likewise, if the smallest diameter allowed is larger than can be “seen” at the highest \(Q\) in the data, it may also be hard for the fit to converge. On the other hand, it is best not to excessively exceed the limits imposed by the \(Q\) range being fit.

If the data is on absolute scale and a quantitative volume fraction is desired the contrast factor between the domain of interest and the matrix must be set correctly. Otherwise, the value is not important and can be left alone.

The number of bins sets the number of sizes within the size range that will be calculated.

The models section default is usually appropriate. Currently, only the ellipsoid model is implemented. This may be expanded in the future to include cylinders for example. The aspect ratio for the ellipsoid however can be changed. The default of 1 is for a sphere. An aspect ratio greater than 1 will yield a prolate ellipsoid while a value smaller than 1 is for an oblate ellipsoid.

Warning

The Size Distribution analysis assumes the data is properly background subtracted. The smaller sizes in particular will be very sensitive to that. If this is not the case for your data, proceed to the options tab as described below and ensure that the background subtraction is set correctly.

At this point, one can run a fit. There are two buttons at the bottom of the panel: Qick fit and Full fit. One should always start with the Quick fit. The only difference between the two is that the first will only run the calculation once and produce the result.

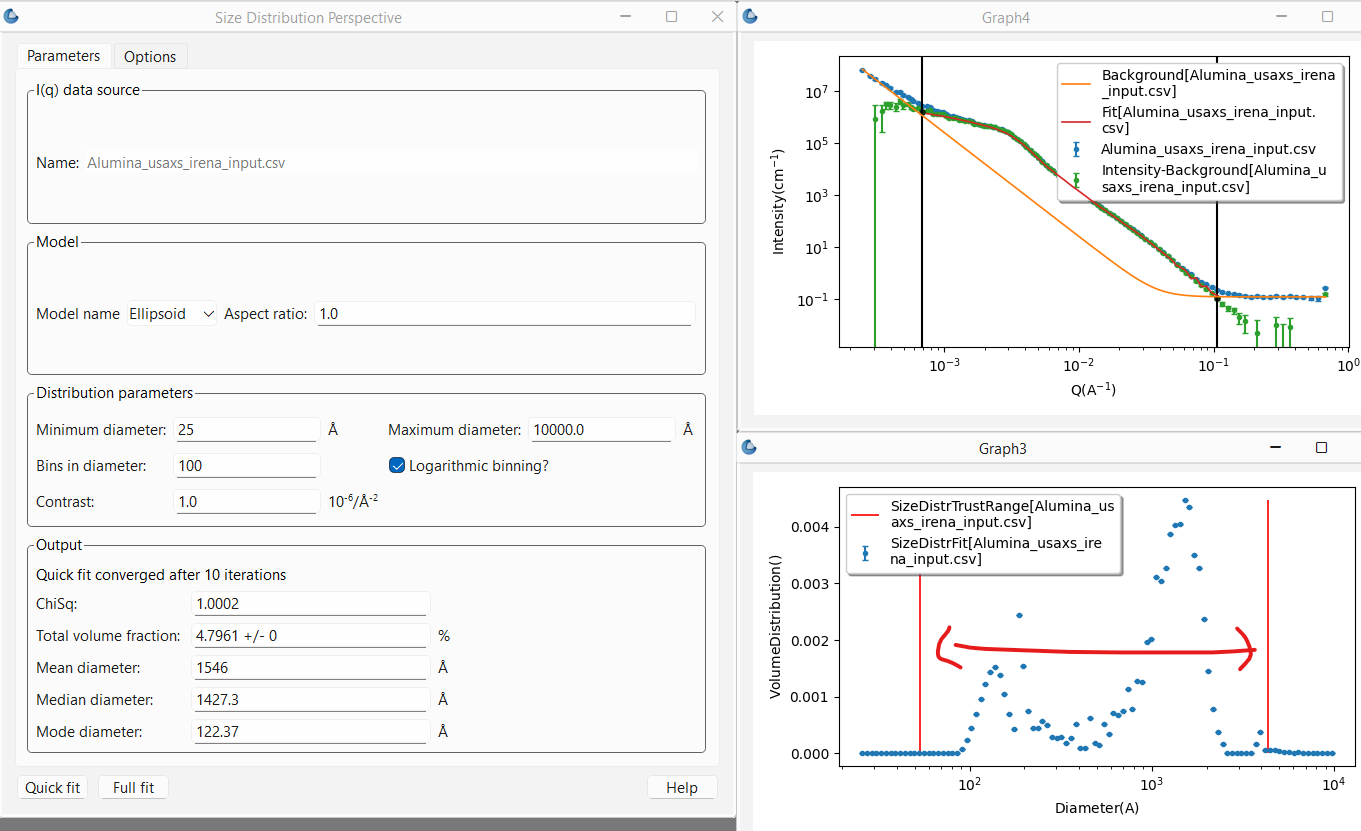

../../../../_images/QuickFit.png

After a short time, the graph will be updated with the fit to the data using the resulting distribution, while a second plot will pop up showing the final distribution of sizes that are returned, giving the volume fraction (true or relative depending on whether the data are on absolute scale or not) of each size. Finally the Output section of the Parameters tab will show the results including whether or not the fitting converged, the reduced \(\chi^2\), the percent volume fraction of domains (assuming absolute scaled data and correct contrast term) along with statistics on the diameter such as the mean and median.

Note

Currently the diameter averages are given in terms of the volume distribution not the number distribution. Thus the mean diameter is essentially weighted towards the largest sizes. The number distribution may be given in future versions.

In the plot representing the distribution of sizes there are also two red vertical lines. These lines represent a conservative estimate of the sizes that are well within the \(Q\) range of the fit and thus “trustable.” Any amount of sizes outside that range should be considered highly suspect!

Note

This is usually a fairly ill posed problem and the fitting may not converge. This will pop up a WARNING: in the log explorer warning that this is the case. The results panel will also note in bold red font that the fitting did not converge. The algorithm will return the values from the last iteration that was run but should be viewed with suspicion. One should never report values from an unconverged fit!

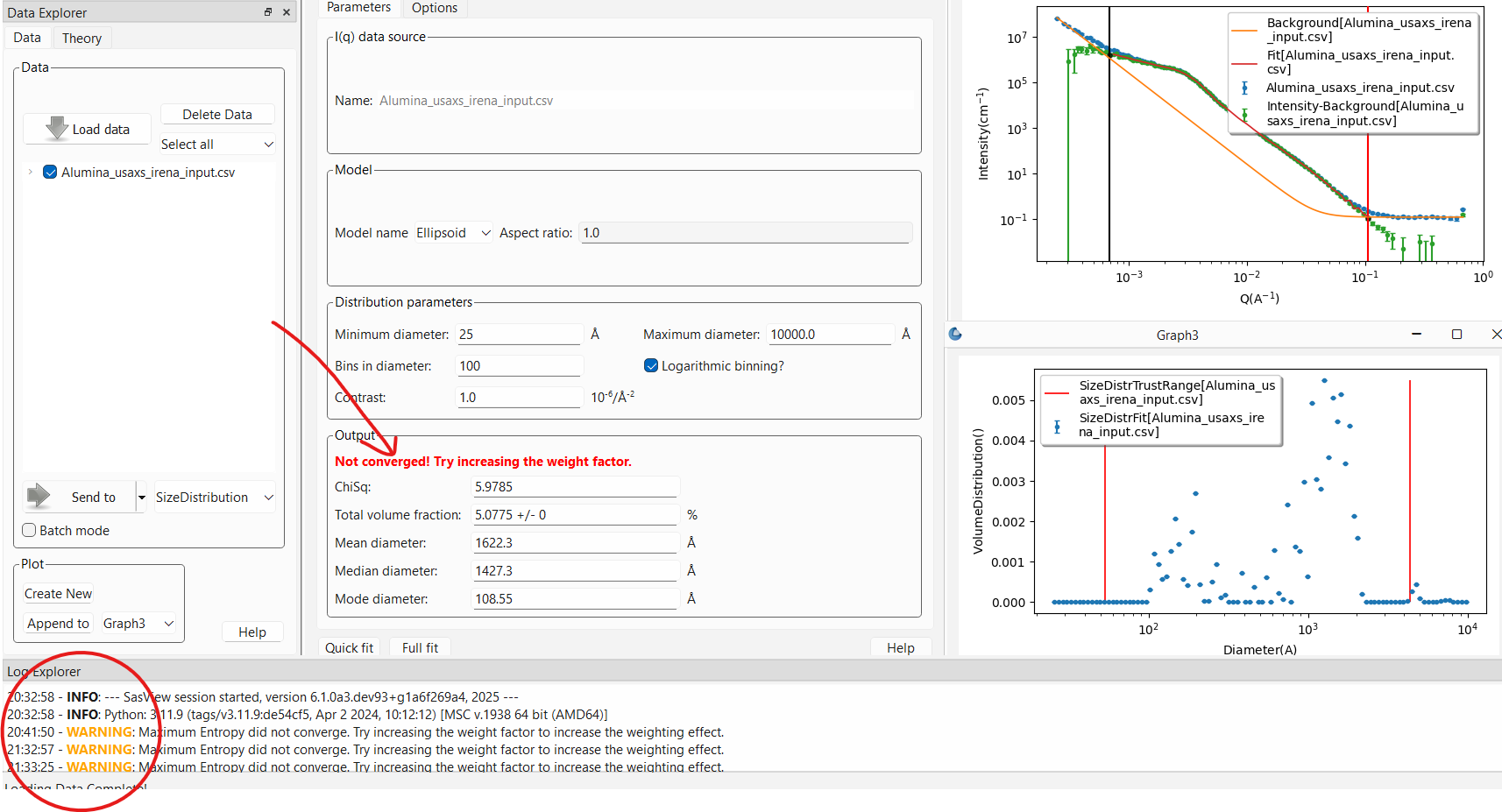

../../../../_images/QuickFitFailed.png

Once one is happy with the Quick fit results, it is recommended to finish by running a Full fit. This will run the same fit ten times over. However, each time the input data will be “randomized” within the data’s error bars to account for the noise in the data. The sigma on the resulting distribution magnitudes provides an estimate of the uncertainties on those values and the resulting total volume fraction.

../../../../_images/FullFit.png

Refining the fit

In order to get a more reasonable fit, and in particular one that converges, it will often be necessary to adjust the parameters on the Options tab.

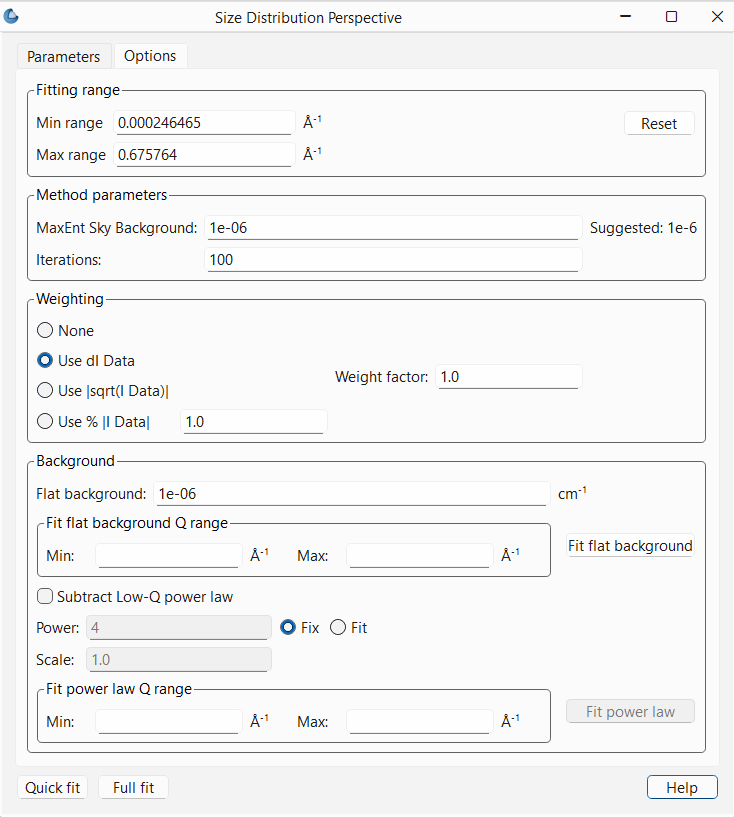

../../../../_images/OptionsTab.png

The first thing to worry about, as noted above, is the background subtraction. The usual high Q background can be entered if known. It can also be estimated using a Porod Plot (available using the linearized fits in SasView). This is probably the most accurate way to determine the background if it is not known. Alternatively, if there are sufficient points in the data that are clearly in the flat background region, the background can be estimated by providing the minimum and maximum \(Q\) where the data is flat and then pressing the Fit flat background button in the Options tab. The values to use for the \(Q\) limits can be read off the plot by moving the cursor over the points at the extremes and reading off the x value given in the bottom right of the plot.

At times the data may also have a low \(Q\) background due for example to the interface scattering from a powder sample. In most cases this should be a -4 power law expected from sharp interfaces (the Porod Law for smooth surfaces at the length scales being probed) though there may be times when a different power law is appropriate. However the scale factor will certainly need adjusting. This can be done by first checking the Subtract Low-Q power law check box. At this point, once again it can be done manually. The plot will update each time enter is pressed after changing a background value to show both the background curve and the subtracted data. The user can then iterate to find the best values. Alternatively, and again giving the minimum and maximum \(Q\) values that are 100% dominated by the low \(Q\) background term and pressing Fit power law, the program will estimate the values by fitting a power law to the region of data indicated. Here one can choose to fix the power law exponent to a known value (the default) and only the scale factor will be estimated, or, by checking the Fit radio button next to the power text entry box, both the power law exponent and scale factor will be estimated.

Once the backgrounds are subtracted properly, the range of \(Q\) to be fit can also be limited using either the range sliders in the plot or entering the values in the Fitting range box of the Options tab. Remember that these \(Q\) bounds define the range of diameters that can be probed using this method.

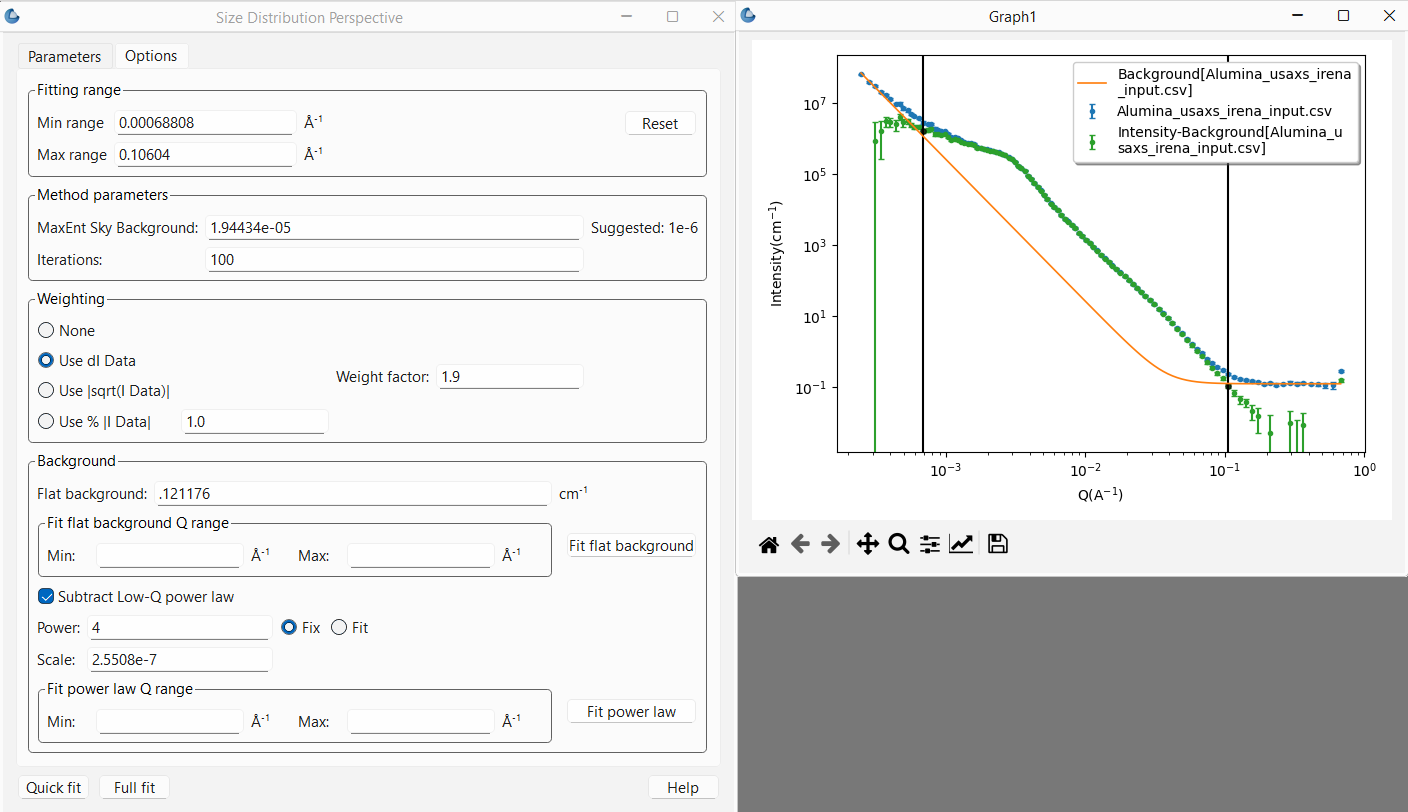

../../../../_images/backSubtracted.png

Next the Weighting box parameters can be adjusted. SasView automatically sets the fitting to use the uncertainty data associated with the data, or, if no uncertainties are given with the data (which should never be the case), will set it to 1% of the intensity value for each data point. No uncertainty on the data points will almost always fail to converge. There are a couple of other options, neither great choices, to mitigate this. But to be very clear, it is HIGHLY discouraged to use data without uncertainties.

That said, scattering data never accounts for anything but counting statistics. When the uncertainty is dominated by those this can be reasonable. However, if it is not, then the uncertainties can be far too small. This will have a huge impact on the ability of this analyis to converge. This is often a problem with X-ray data for example, but is true for most data and a particular problem here because one of the criteria for convergence is that \(\chi^2\) be within 1% of 1.0 (so 0.99 < \(\chi^2\) < 1.01). A first order correction is made available here in the Weight factor box. The value entered here effectivly increases the size of the uncertainties sent to the fitting routine by that factor. Larger error bars will decrease \(\chi^2\) thus making convergence easier.

Finally, there is a Method parameters box which contains two adjustable parameters:

  • MaxEnt Sky Background. This is a value that should be small and probably never adjusted unless one knows what one is doing. Basically it adds a level of inherent background.

  • Iterations. This sets the maximum number of iterations the Maximum Entropy optimization routine will perform before it stops and returns a “not converged” error. In general, if the routine does not converge in 100 iterations it probably won’t. Typical numbers of iterations for convergence range from 5 to 30. It is possible to increase the limit to whatever number one has patience for.

Reference

Note

This help document was last modified by Paul Butler on May 30, 2025
