Example 2: A Magnetic Cylinder

In this example we will generate an SLD file describing a single solid cylinder, with both nuclear and magnetic scattering length densities (SLDs). We will then use the calculator to create scattering intensity patterns for both a non-magnetised and magnetised cylinder.

Our cylinder will have a radius of 20Å and a length of 40Å, with its axis at a 60° polar angle to the \(z\)-axis. The cylinder will have equal nuclear and magnetic SLDs, with the magnetic SLD along the cylinder’s axis. We will write first an SLD file for an cylinder aligned along the \(z\) axis - and perform the rotation within the calculator.

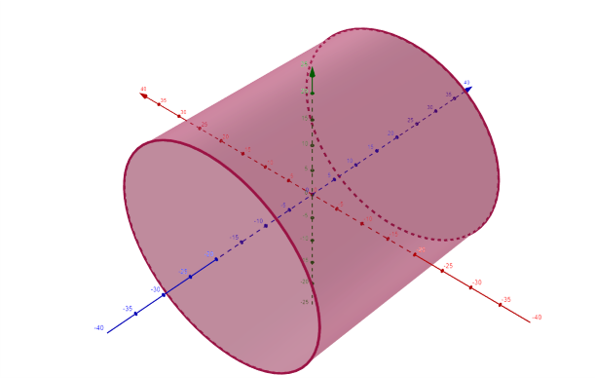

The file should describe a cylinder as below, with a constant nuclear scattering length density of 1x10-6Å-2 and a constant magnetic scattering length density of (0, 0, 1x10-6)Å-2:

../../../_images/cylinder_graphic.png

The following code generates a SLD file describing such a sample, using the SLD file format as given in the documentation for the generic scattering calculator:

import numpy as np

size = np.linspace(-35.0, 35.0, 50) # describe each axis of the grid
# create a full 3D grid
xs, ys, zs = np.meshgrid(size, size, size)
xs = xs.flatten()
ys = ys.flatten()
zs = zs.flatten()
# create arrays to hold the SLDs
N = np.zeros_like(xs)
Mx = np.zeros_like(xs)
My = np.zeros_like(xs)
Mz = np.zeros_like(xs)
# fill in the values of the non-zero SLDs within the cylinder
inside_cylinder = np.bitwise_and(np.float_power(xs, 2) + np.float_power(ys, 2) <= 20**2, np.abs(zs) <= 20)
N[inside_cylinder] = 1e-6
Mz[inside_cylinder] = 1e-6
# save the output to an sld file
output = np.column_stack((xs, ys, zs, N, Mx, My, Mz))
np.savetxt("mag_cylinder.sld", output, header="x y z N mx my mz")

We do not need to worry that the large number of pixels with zero valued SLD around the cylinder slows down the computation, as such pixels are stripped before the calculation begins.

Structural Scattering

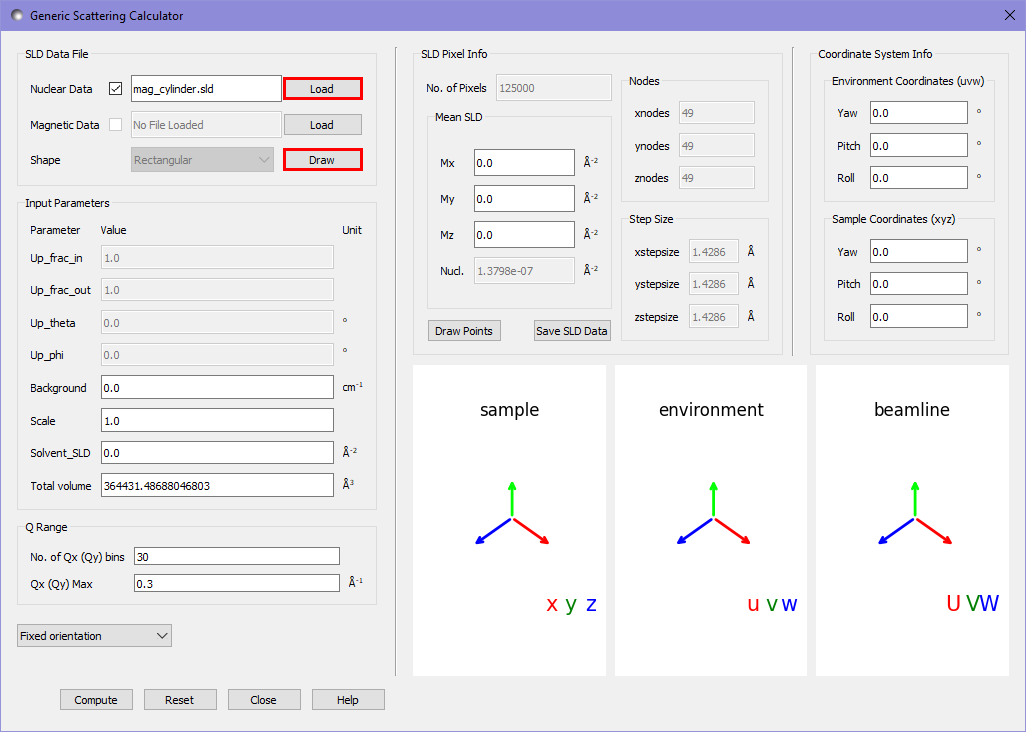

First we consider the scattering pattern of a non-magnetic cylinder. We open the scattering calculator and use the nuclear datafile load button to load the nuclear SLD for this sample into the calculator.

../../../_images/gsc_tool_1.png

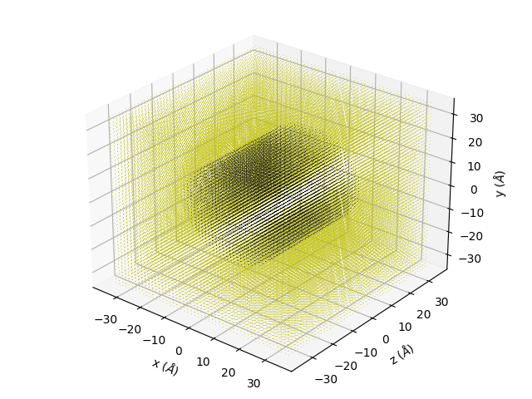

By pressing the draw button we can see a view of the pixels describing the sample. Pixels with 0 SLD are coloured in yellow, all others are given a colour related to their SLD, which in this case is a constant.

../../../_images/cylinder_draw_output.png

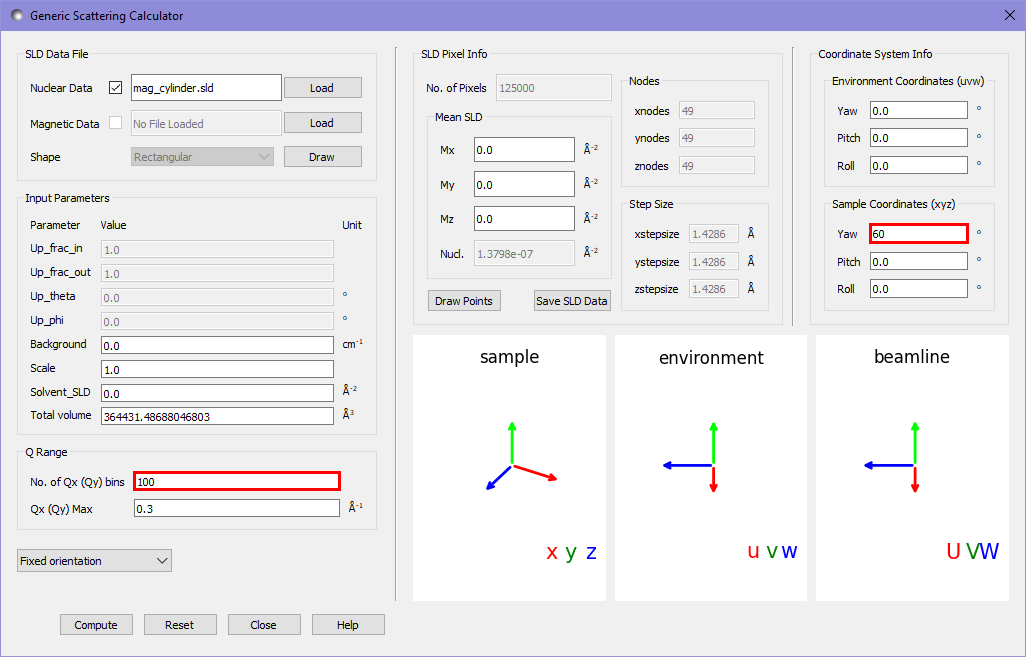

In order to set the cylinder at an angle of 60° to the \(z\) axis we use the sample coordinates highlighted in red below. We also want a 100x100 pixel binning in \(Q\). Unlike the default data in example 1, this value is not given a warning orange background, due to the higher discretisation of the real space data for the cylinder.

../../../_images/gsc_tool_2.png

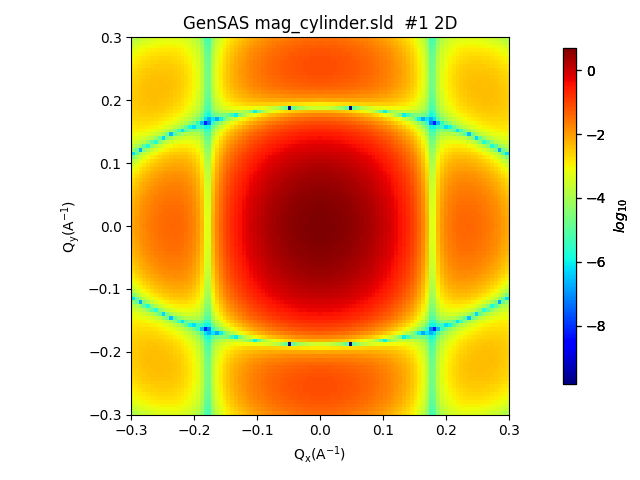

Pressing compute gives us the following output in the main window:

../../../_images/nuclear_output.png

This relatively simple system can be compared with the analytical model in the fitting calculator to test the correctness of our results. We send the output of the scattering calculator to the fitting panel as in example 1 Example 1: Default Calculator Data and choose the cylinder category and cylinder model. We then set the following settings to match the fitting calculator to the scattering calculator settings:

  • scale: 1.0

  • background: 0.0

  • sld: 1 (\(\times 10^{-6}\) in units)

  • sld_solvent: 0

  • radius: 20

  • length: 40

  • theta: 60

  • phi: 0

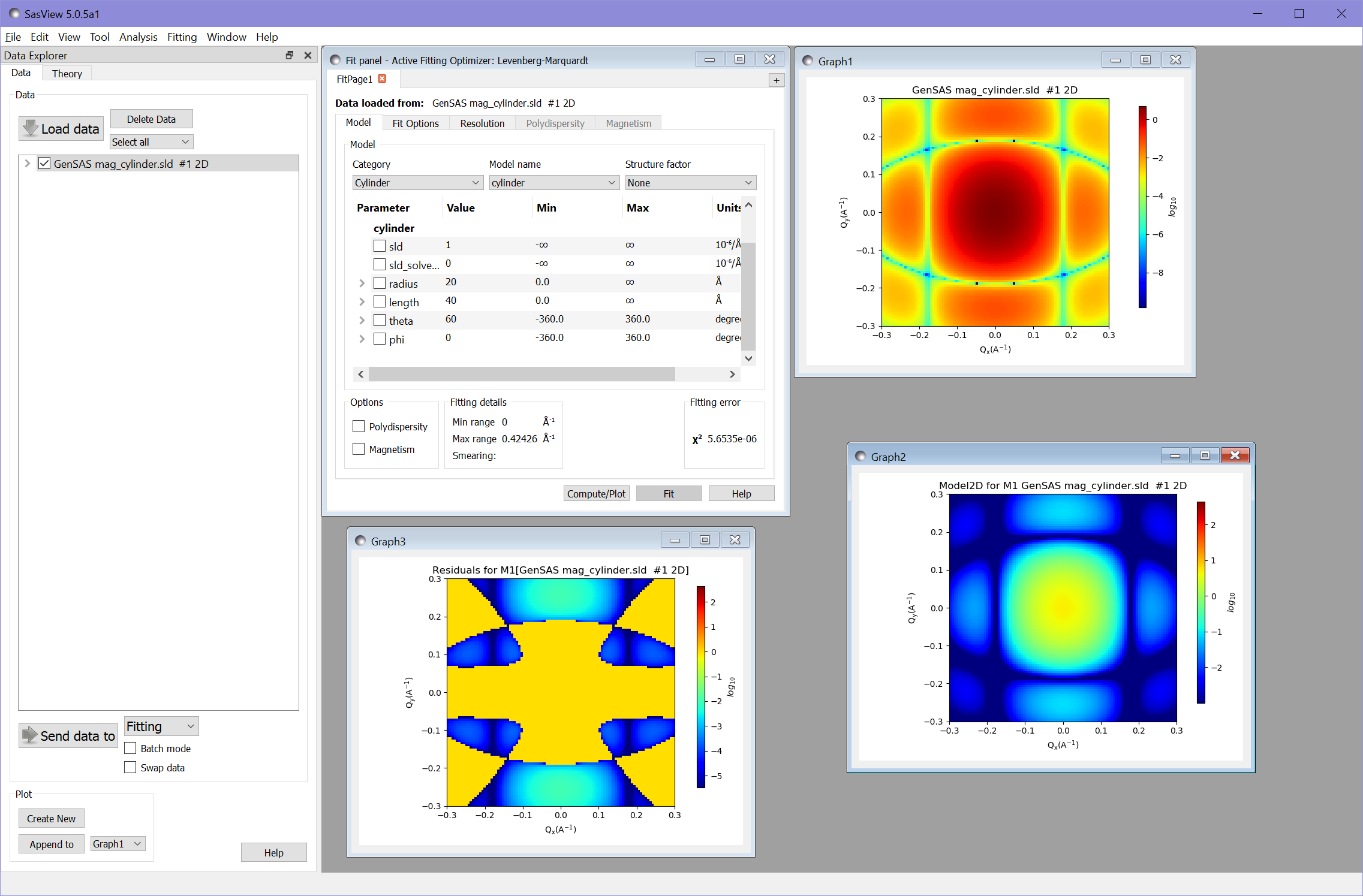

Computing this gives us the model and residual plots:

../../../_images/main_window_3.png

The value of \(\chi^2 = 5.65\times 10^{-6}\) demonstrates that the calculator has produced very accurate results.

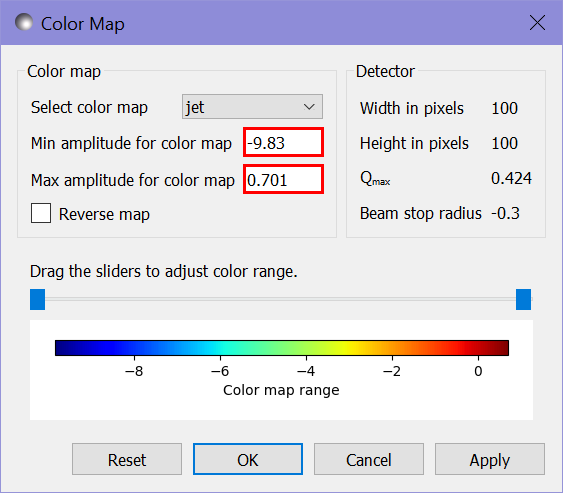

For a better comparison of the results, we can adjust the colour scales by right-clicking on each of the scattering intensity plots and selecting 2D Color Map to set the maximum and minimum ranges of the plots:

../../../_images/color_map_4.png

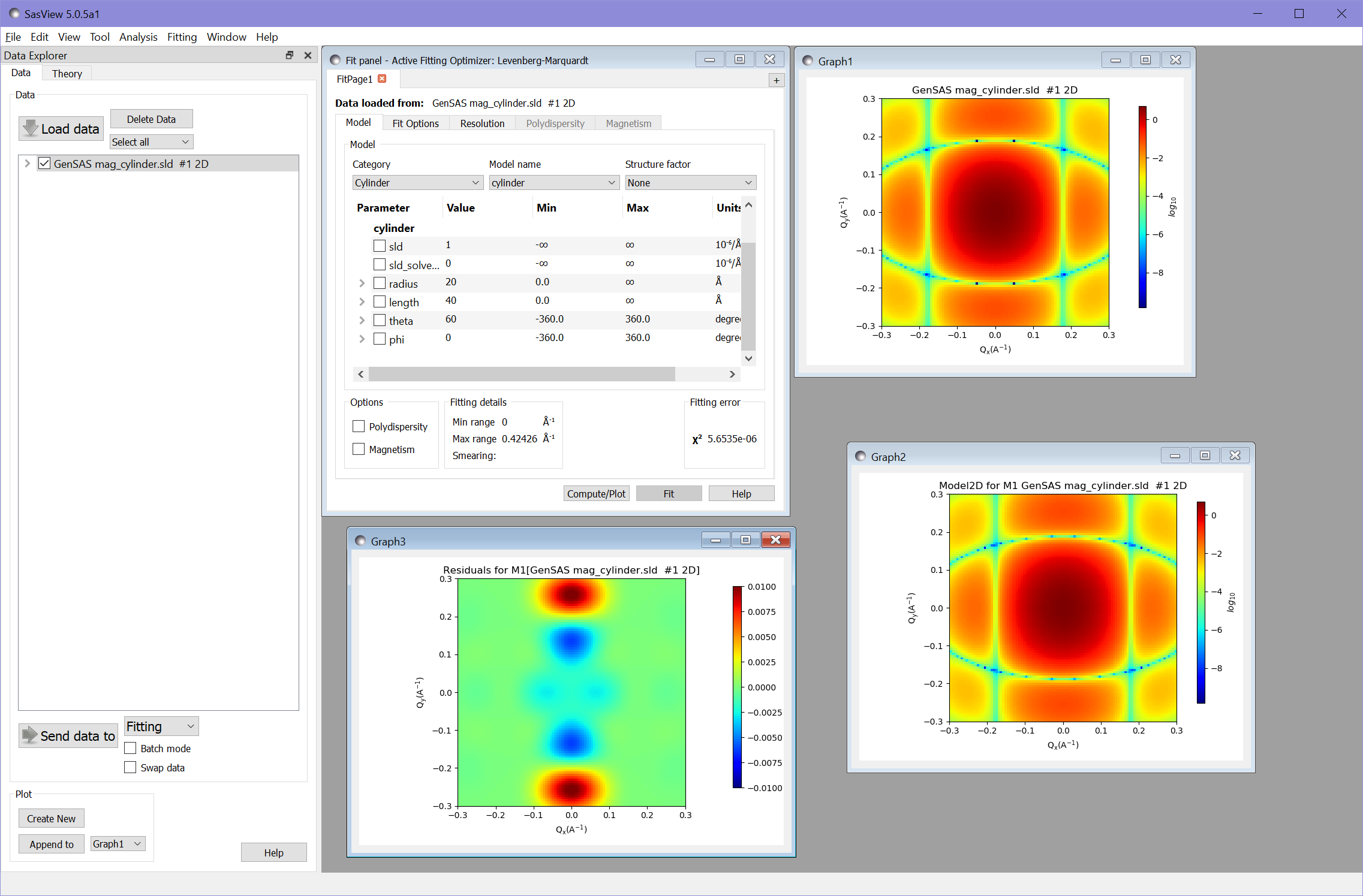

We also need to adjust the scale for the residuals plot. Since the residuals for this fit include negative values we need to change from a log to a linear scale by right clicking the plot and selecting Toggle Linear/Log Scale. We can then adjust the range of the color map as before - in this case to the range from -0.01 to 0.01.

../../../_images/main_window_5.png

Magnetic Scattering

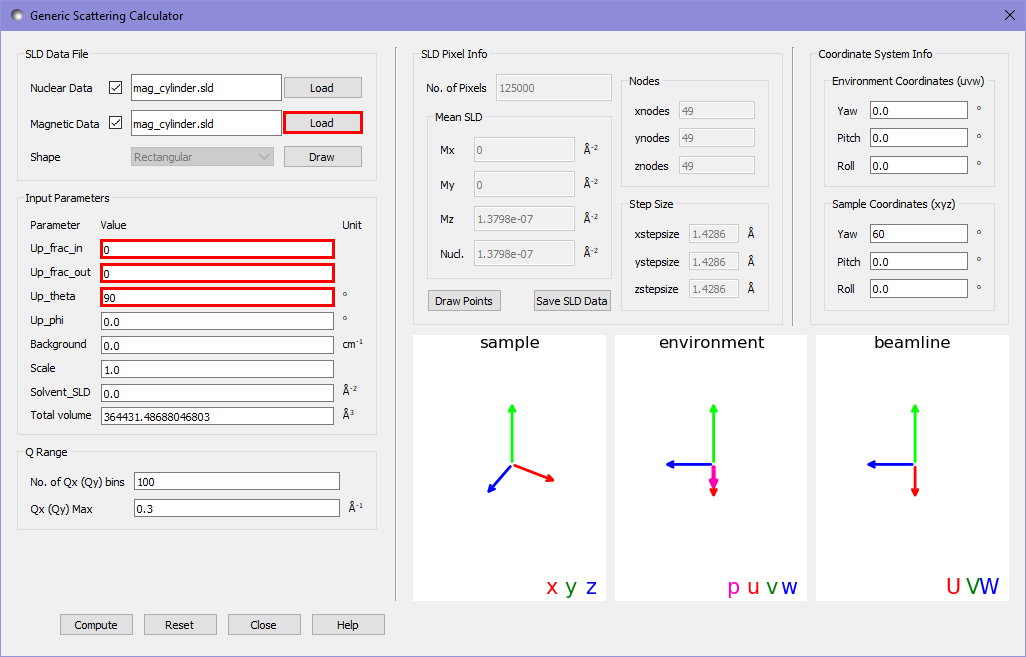

We will now add the magnetic SLD to the cylinder. We load our magnetic cylinder SLD file into the magnetic datafile slot, and alter the magnetic beamline settings to put the polarisation direction along the \(U\) axis (the horizontal direction) and to record the ++ cross-section (“+” state as defined in Moon, Riste, and Koehler, 1969 [1] corresponds to 0 in the textbox for up_frac).

../../../_images/gsc_tool_5b.png

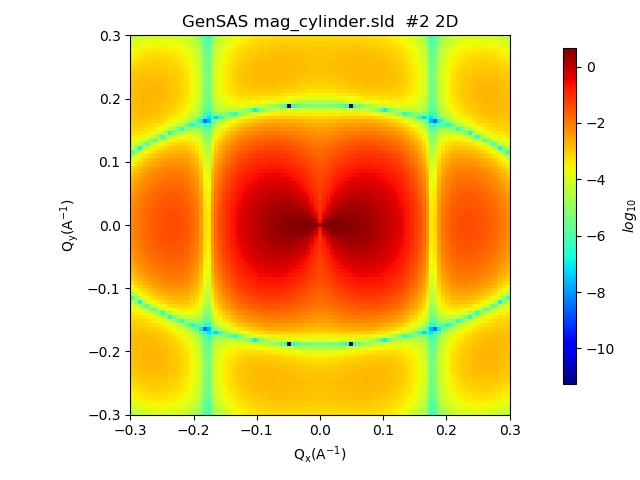

Running the calculation gives us the following output in the main window:

../../../_images/magnetic_output.png

Additional to the structural scattering pattern now an angular anisotropy due to the magnetisation occurs.

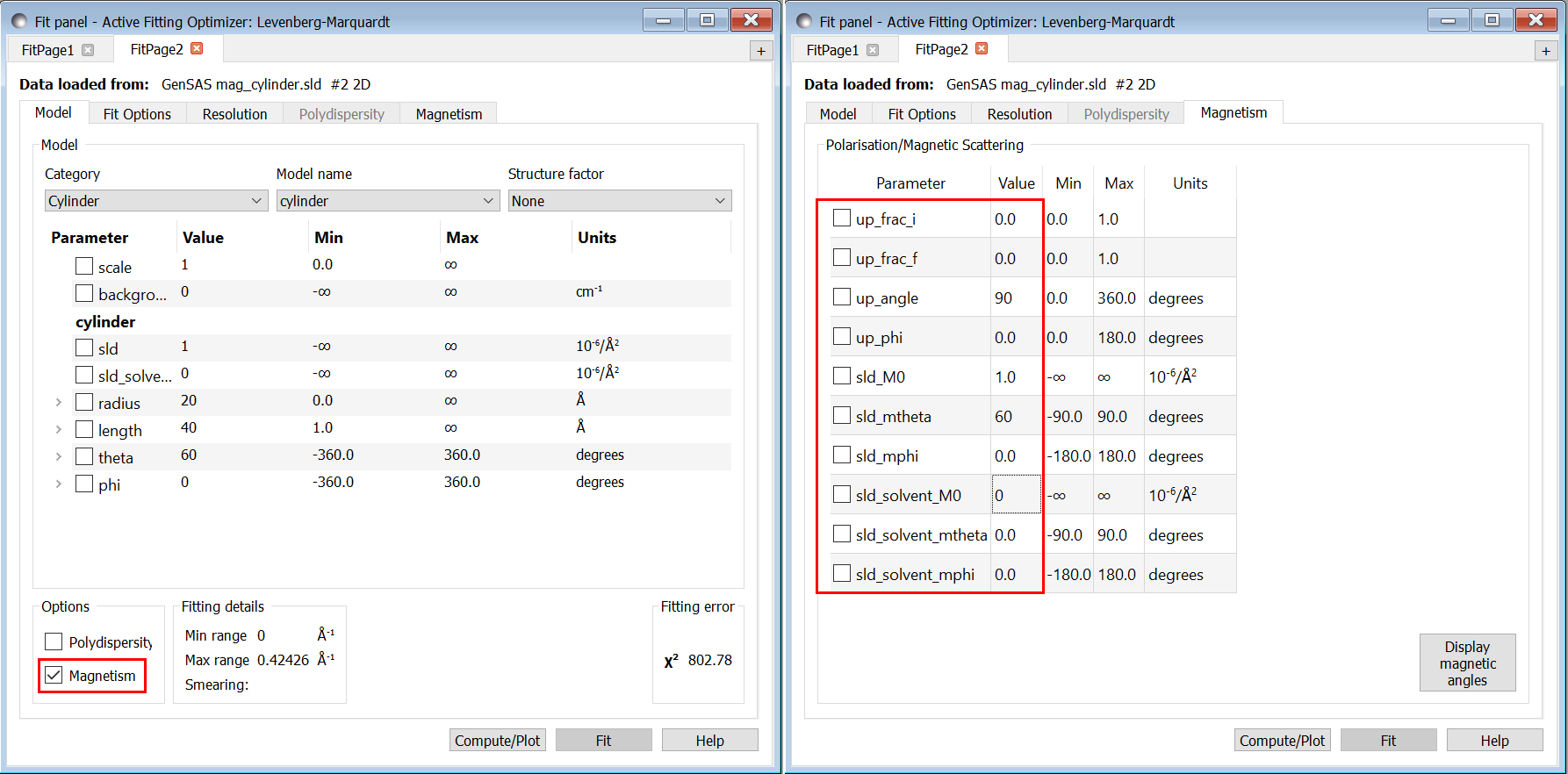

Again we can compare our result to the analytic result of the fitting calculator. We set the same settings as before for the cylinder model but also check the Magnetism checkbox in the fitting window. We then navigate to the Magnetism tab and set the following settings to match with the scattering calculator:

  • up_frac_i: 0

  • up_frac_f: 0

  • up_angle: 90 (corresponds to up_theta in the calculator)

  • up_phi: 0

  • sld_M0: 1 (corresponds to sample magnetic SLD)

  • sld_mtheta: 60 (gives the direction of the magnetic SLD in polar angles)

  • sld_mphi: 0

  • sld_solvent_M0: 0 (the magnetic SLD of the solvent)

  • sld_solvent_mtheta: 0

  • sld_solvent_mphi: 0

../../../_images/magnetism_fitting.png

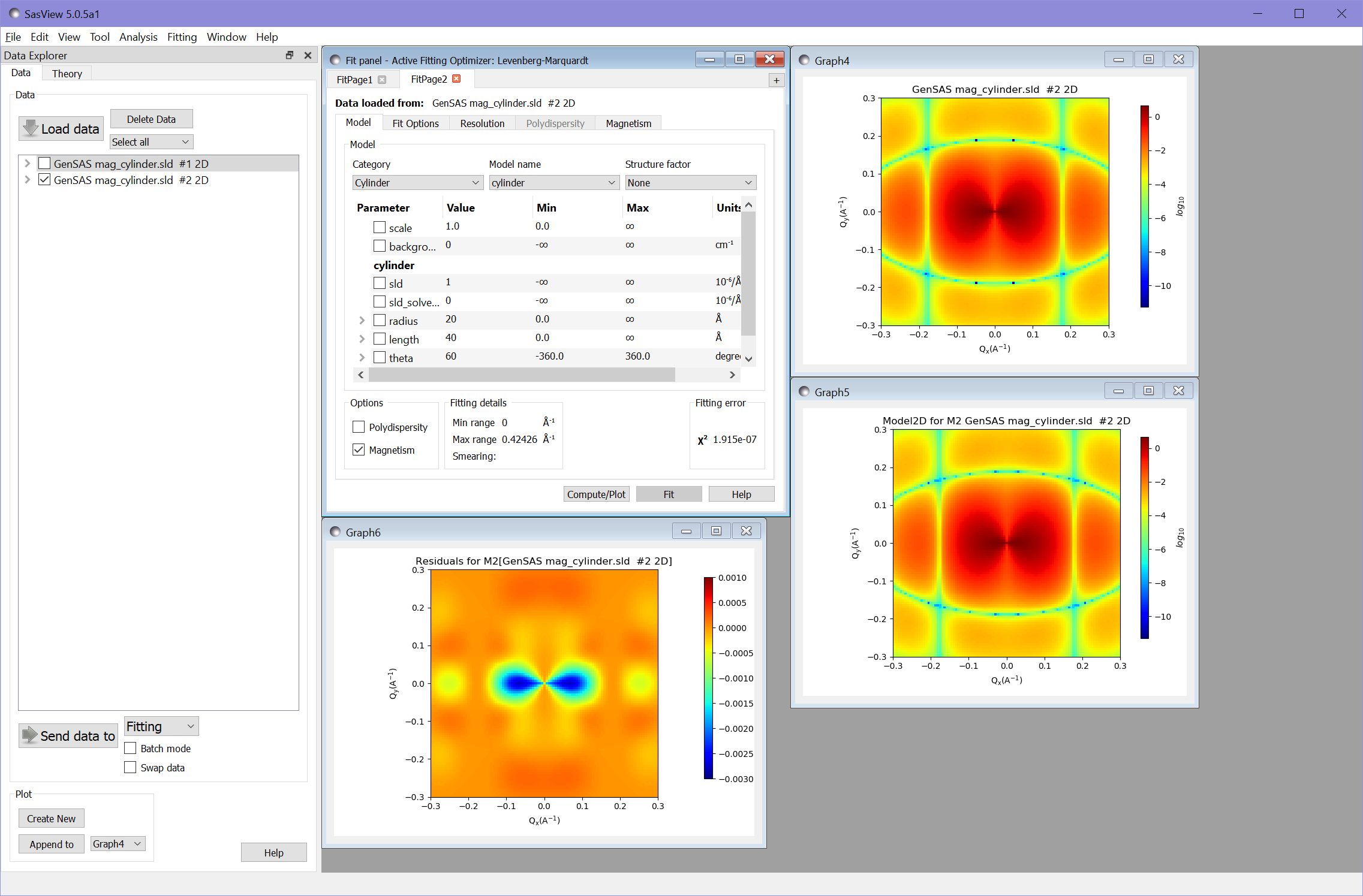

Carrying out the fitting gives the following results (after adjusting scales to match):

../../../_images/main_window_6.png

Again the value of \(\chi^2 = 1.92\times 10^{-7}\) shows an excellent fit.

References

Document History

2021-09-14 Robert Bourne
